Central Carolina Scale sells and services CAS Scales & Weighing Equipment

CAS Hercules HFS-405 Platform Scale

How many 4x4 and 5x5 floor scales on the market today come with a manufacturer backed 2 year warranty? Answer is, not many. The best part, the manufacturer, CAS Corporation, is located in New Jersey and is just a phone call away. This economical HFS platform scale is available in your choice of either a 5000 lb capacity with one pound increments or 10,000 pound capacity with two pound graduations. The dimensions are 48" x 48" x 3.5" or 60" x 60" x 3.5" and the platform features an anti-skid diamond plate top. Can be configured with several different choices of digital indicators.

Shipping weight goes down and performance remains - how?
CAS took a page from modern technology in developing the HFS-405. Today’s modern planes, boats, cars and trucks are all being made lighter to conserve resources. Yet the vehicles of today are far superior in performance to the same types made just ten years ago. How is that? It’s simple engineering. Modern engineers have perfected the use of structural tubular design; steel beams created to weigh less and engineered with structural integrity superior to conventional steel beams. This tubular steel beam technology is used in the HFS-405 scale. Producing a floor scale of uncompromising strength. It weighs one-third less than other low profile floor scales and still provides a 150% overload protection.

HFS Features

48" x 48" or 60" x 60" Low Profile Floor Scale
Anti-skid Diamond Plate Deck
Rugged Structural Tubular Design
Side Access Junction Box
Quick Connect Cable
Cable Length - 16 ft.
NTEP #07-022 - Legal for Trade

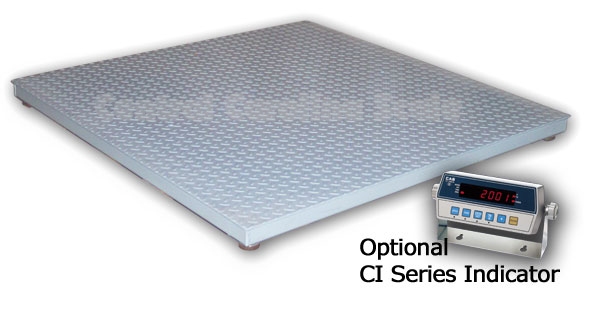

hfs-405
HFS Floor Scale Brochure (pdf file)

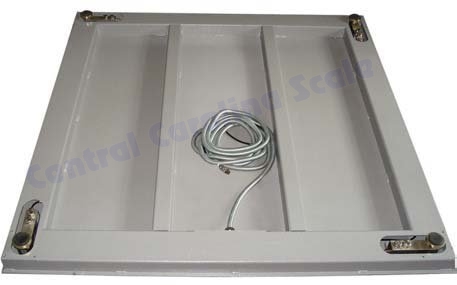

underside

Model
Dimensions
Capacity
Ship Weight
HFS-405
48" x 48" x 3.5"
5000 x 1 lbs
275 lbs
HFS-410
48" x 48" x 3.5"
10,000 x 2 lbs
330 lbs
HFS-505
60" x 60" x 3.5"
5000 x 1 lbs
365 lbs
HFS-510
60" x 60" x 3.5"
10,000 x 2 lbs
420 lbs



Options Available

Digital Indicators CAS CI-2001 A/B or CI-2001 AS/BS
Ramps 48x36, 48x48, 60x36, 60x48






Call (919) 776-7737 or click above for a quote
